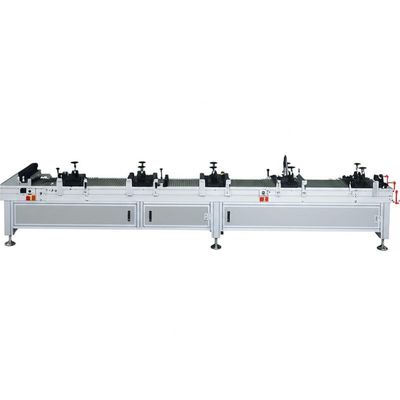

Pcb Capacity Or Specify Electronic Circuit Board Conveyor for Large-Scale Production

Product Description:

The Printed Circuit Board Conveyor is an essential component in any PCB transportation system, designed to efficiently move PCB boards within a manufacturing or assembly environment. With a quick PCB board time of just 6 seconds, this conveyor system ensures smooth and continuous flow of PCBs throughout the production process.

Measuring at a machine dimension of either 500 * 850 * 1250 mm or 600 * 960 * 1250 mm, the Printed Circuit Board Conveyor can be customized to fit the specific layout and space requirements of your facility. This flexibility in dimensions allows for seamless integration into existing production lines, maximizing efficiency and productivity.

The conveyor system offers multiple pitches to accommodate different PCB board sizes and configurations, with options for pitches of 10mm, 20mm, and 30mm. This versatility ensures that the Printed Circuit Board Transporter can handle a variety of board types, making it suitable for a range of manufacturing applications.

Equipped with a durable 3mm diameter conveyor belt, this system provides reliable and consistent transportation of PCB boards without the risk of slippage or damage. The high-quality materials used in construction ensure long-lasting performance and minimal maintenance requirements, contributing to the overall efficiency of your production processes.

When it comes to board thickness, the Printed Circuit Board Conveyor can accommodate boards as thin as 0.6mm, making it suitable for a wide range of PCB manufacturing requirements. Whether you are working with standard thickness boards or ultra-thin substrates, this conveyor system provides the precision and stability needed for smooth board transport.

In conclusion, the Printed Circuit Board Conveyor is a reliable and efficient solution for PCB transportation, offering quick board times, customizable dimensions, versatile pitches, and durable construction. With its ability to handle various board sizes and thicknesses, this conveyor system is an essential tool for optimizing production workflows and ensuring the seamless movement of PCBs within your manufacturing facility.

Features:

• Product Name: PCB Conveyor
• Machine Dimension: 500 * 850 * 1250 Mm Or 600*960*1250mm
• Communication Mode: SMEMA
• Transmission Style: Conveyor And Driver Bar
• Body Structure: Strengthen Sheet-metal
• Pitches: 10, 20, 30mm

Technical Parameters:

Applications:

When considering the product application occasions and scenarios for the PCB Conveyor, it is essential to examine its key attributes. The body structure of this conveyor is built with strengthen sheet-metal, ensuring durability and stability in various industrial settings. This feature makes the PCB Conveyor suitable for use in demanding environments where robust equipment is required.

The guide rail of the PCB Conveyor can be configured as either L-R or R-L, providing flexibility in PCB transfer directions. This versatility allows the conveyor to adapt to different production layouts and requirements, making it a versatile solution for various manufacturing setups.

With a transmission length of 400+800mm, the PCB Conveyor is ideal for applications where precise and controlled transportation of printed circuit boards is necessary. The extended transmission length enables seamless transfer of PCBs between different stages of production, ensuring efficient workflow and minimizing downtime.

The transmission style of the PCB Conveyor involves a combination of conveyor and driver bar, offering a reliable and efficient method for transporting PCBs within a manufacturing facility. This setup ensures smooth and consistent movement of printed circuit boards, contributing to overall productivity and quality control.

Additionally, the diameter of the conveyor's components is 3mm, providing the necessary strength and support for carrying PCBs securely along the production line. This feature enhances the stability of the transportation process, reducing the risk of damage to delicate circuit boards.

The PCB Conveyor is commonly used in PCB transfer machines, printed circuit board transporters, and similar equipment that require precise and reliable conveyance of electronic components. Its robust body structure, flexible guide rail options, extended transmission length, and efficient transmission style make it a valuable asset in various manufacturing scenarios.

Customization:

Product Customization Services for the Printed Circuit Board Conveyor:

- Board Thickness: Min 0.6 mm

- Communication Mode: SMEMA

- Buffer Capacity: Max. 24 PCB’s at pitch 1

- Application: SMT Production Line, for SMT Machine

- Machine Dimension: 500 * 850 * 1250 mm or 600*960*1250mm

Packing and Shipping:

Product Packaging:

The PCB Conveyor is carefully packaged in a sturdy cardboard box with protective foam inserts to ensure safe transit and delivery.

Shipping:

Once your order is processed, the PCB Conveyor will be shipped using a reliable courier service. You will receive a tracking number to monitor the delivery status of your package.
